2 to 5 rooms range
Capacity Class 12.00 kW
AOTH45KBTA5
| Product Category | Multi Systems R32 |
| Product Range | 2 to 5 rooms range |
| Capacity Class | 12.00 kW |
| Model Number | AOTH45KBTA5 |
Technical Specifications
| Operation Type | Reverse Cycle |
| Maximum Connectable Indoor Units | 5 |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 12 |
| Cooling Capacity kW (Rated (Min - Max)) | 12.50 (3.5 - 14) |
| Heating Capacity kW (Rated (Min - Max)) | 13.20 (3.5 - 16) |
| Input Power Cooling kW (Rated (Max)) | 3.57 (4.2) |
| Input Power Heating kW (Rated (Max)) | 2.93 (4) |
| EER Cooling kW/kW | 3.5 |
| COP Heating kW/kW | 4.5 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.534 / 5.277 / 5.696 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.755 / 5.041 / 4.3 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.988 / 6.299 / 6.885 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.767 / 5.334 / 4.69 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 53 / 55 |
| Outdoor Sound Power dBA | 69 |

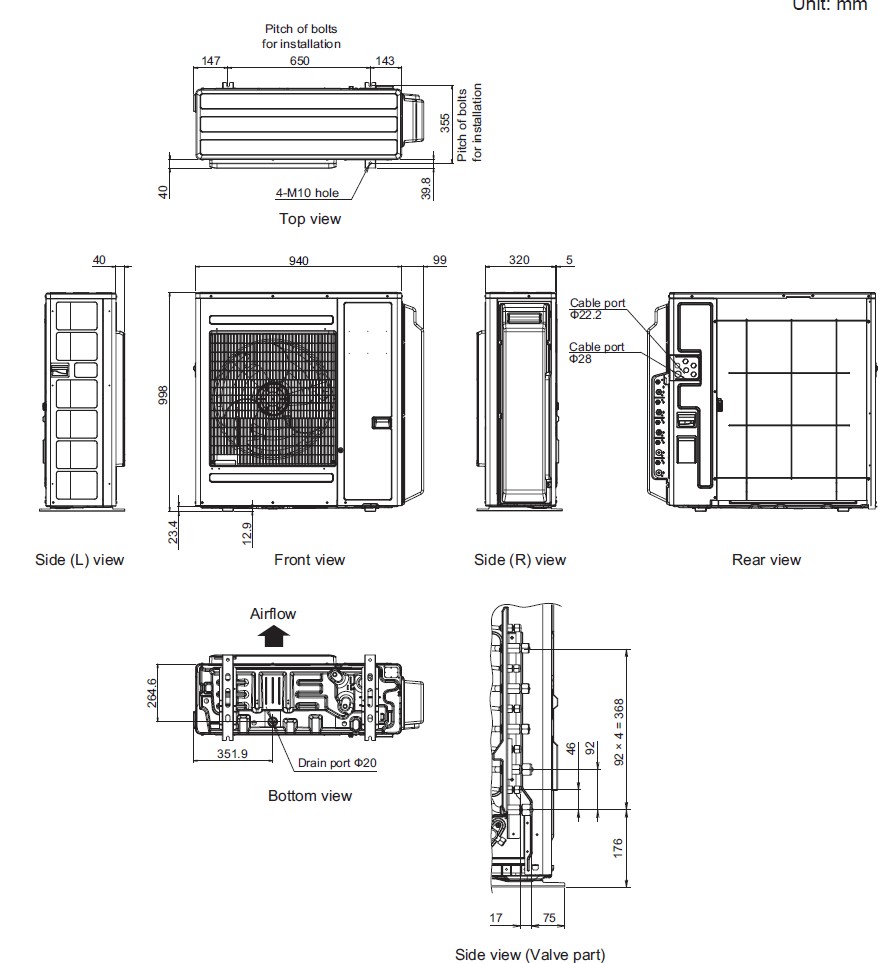

| Outdoor Unit Dimensions mm (Height x Width x Depth) | 998 x 940 x 320 |
| Outdoor Unit Weight kg | 74.00 |
| Pipe Length m (Max (Precharged)) | 80 (50) |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 3,000 |
