2 to 5 rooms range
Capacity Class 10.00 kW

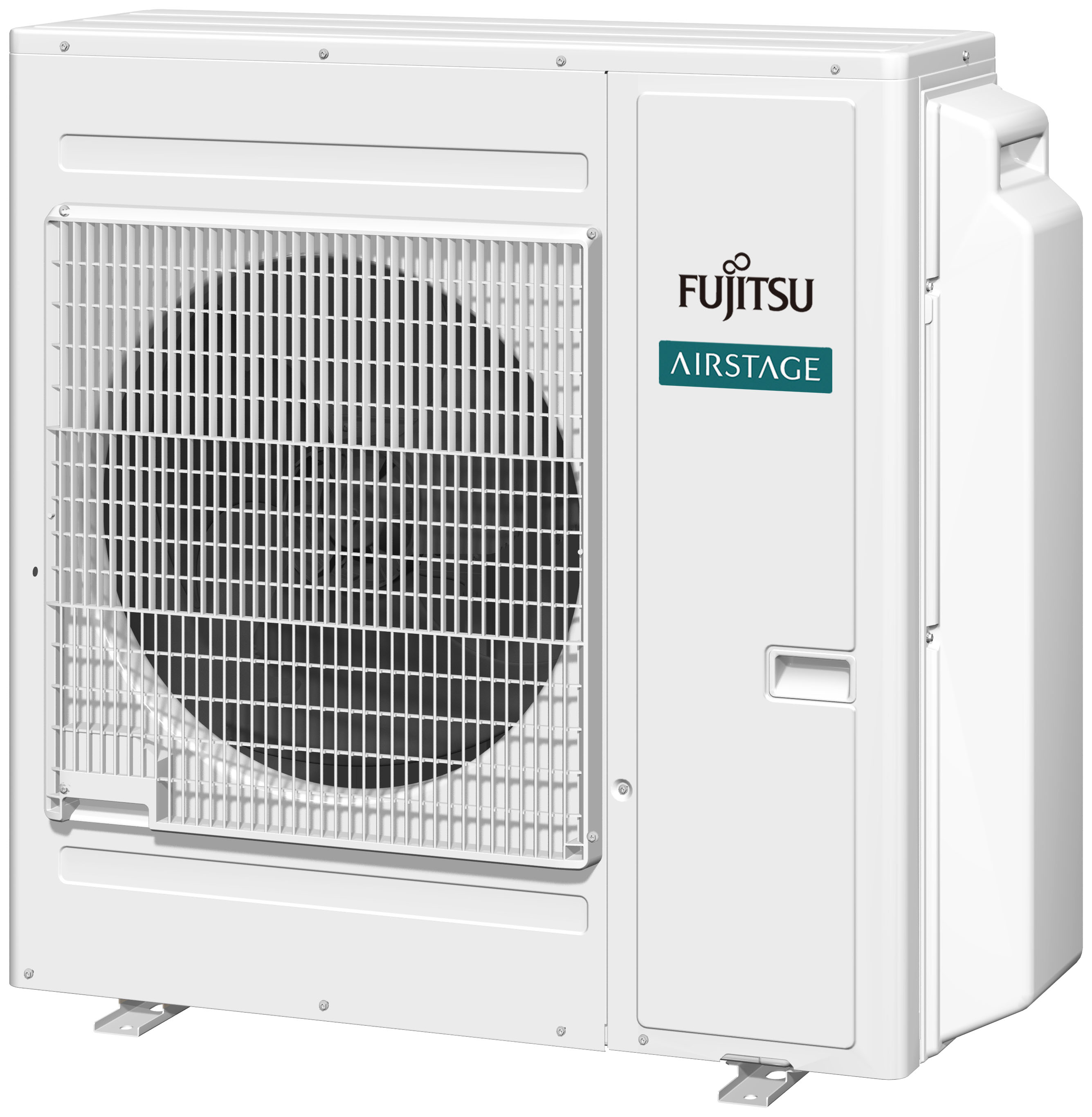

AOTH36KBTA5
| Product Category | Multi Systems R32 |
| Product Range | 2 to 5 rooms range |
| Capacity Class | 10.00 kW |
| Model Number | AOTH36KBTA5 |
Technical Specifications
| Operation Type | Reverse Cycle |
| Maximum Connectable Indoor Units | 5 |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 10 |
| Cooling Capacity kW (Rated (Min - Max)) | 10.00 (3.5 - 12.5) |
| Heating Capacity kW (Rated (Min - Max)) | 12.00 (3.5 - 14) |
| Input Power Cooling kW (Rated (Max)) | 2.44 (3.7) |
| Input Power Heating kW (Rated (Max)) | 2.47 (3.1) |
| EER Cooling kW/kW | 4.1 |
| COP Heating kW/kW | 4.86 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.744 / 5.477 / 5.763 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.799 / 5.148 / 4.351 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 6.14 / 6.331 / 6.805 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.801 / 5.402 / 4.726 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 52 / 54 |
| Outdoor Sound Power dBA | 68 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 998 x 940 x 320 |
| Outdoor Unit Weight kg | 74.00 |
| Pipe Length m (Max (Precharged)) | 80 (50) |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 3,000 |
Show all specifications
Collapse all specifications

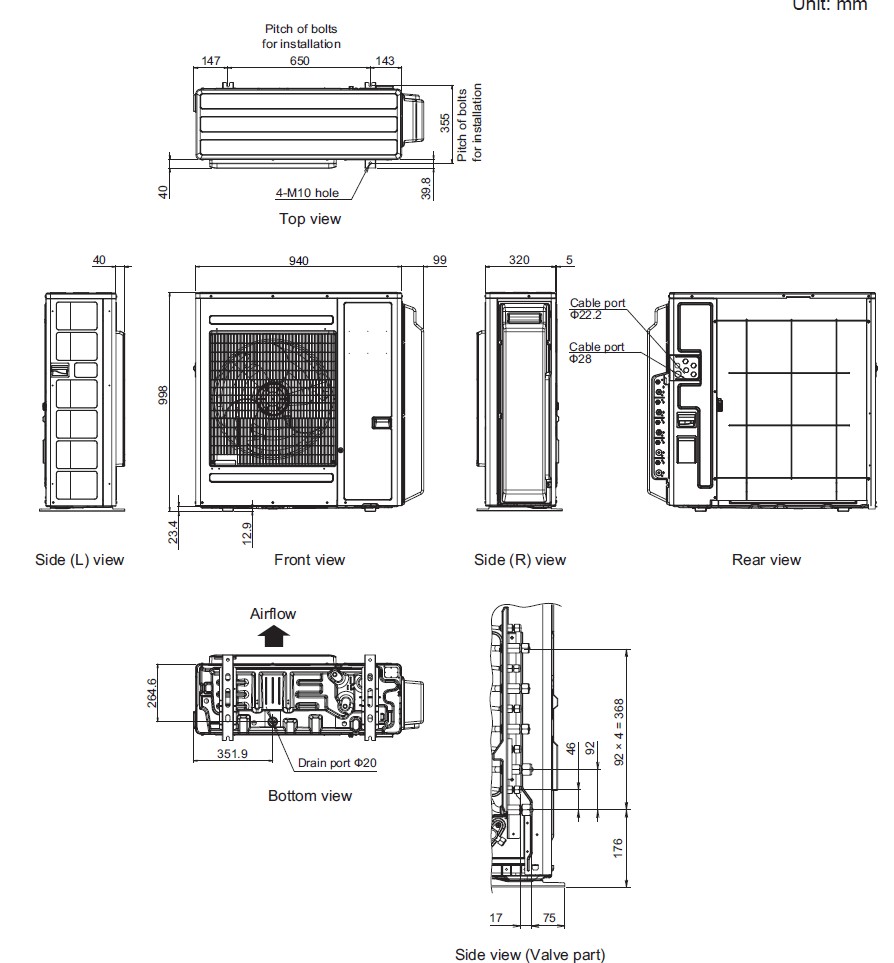

Dimensions
7e5413dc-f23e-4db0-b90c-619324e72ec1.jpg?sfvrsn=848e27dd_1)
